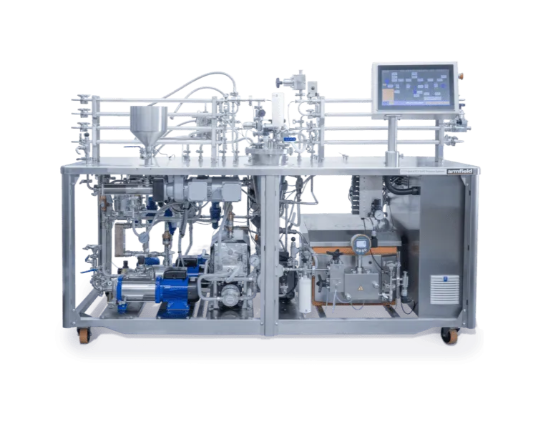

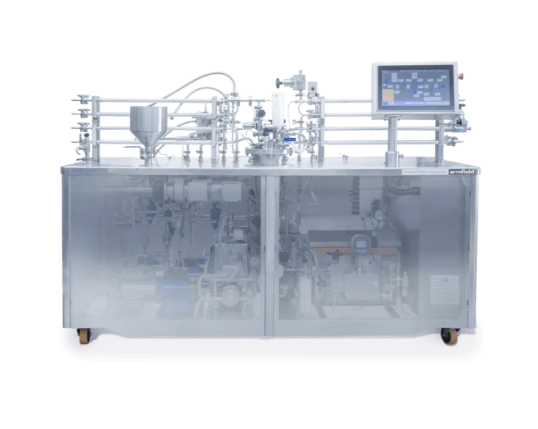

FT174 HTST/UHT Base unit

• The base unit comprises a stainless-steel table for mounting the process equipment, a feed pump and vessel, the touchscreen control panel, steam line components and all associated electrical controls housed in an IP65 cabinet. The base unit provides the services to the heat exchangers.
• Under the tabletop are positions for multiple options or accessories.
• The system is PLC controlled, with a 15” full-colour touchscreen panel PC (IP65). The touch-screen control panel makes it extremely user-friendly to configure and monitor processing parameters.

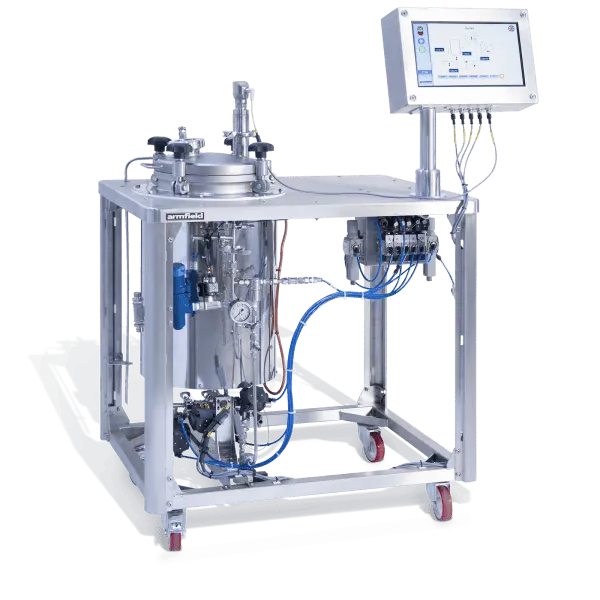

• The sterilization options enable it to be linked to an Armfield sterile filling bench to produce a sterile product, even when using long holding tubes and/or downstream homogenization.
• Different sets of processing parameters can be edited, stored, and quickly recalled using the system’s menu capability.
