HTST/UHT MINI PILOT SYSTEM

FT94X

HTST/UHT Mini Pilot System

Category: Food and Beverage

Brand: Armfield

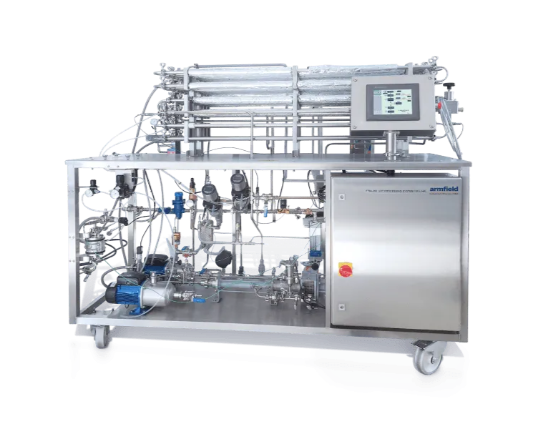

The Armﬁeld FT94X HTST/UHT Mini Pilot System extends the range of continuous operation scaled-down units oﬀered by Armﬁeld to 200 l/hr (30-100 l/hr for the standard FT94X). The unit combines full ﬂexibility with comprehensive instrumentation demanded of research and development equipment.
The FT94X is designed for operation as both a stand-alone unit and also for seamless integration into a full processing system with the capability of aseptic packaging of processed product.

Quick Enquiry Download Brochure

Features

Compact design and easy installation
Low product hold up
Suitable for producing large batches of material for extensive product testing
Suitable for a wide range of products due to both plate and tubular exchangers
From cold start to steady state operation in seconds
Rapid switchover from one heat exchanger to another
Designed for easy integration into a process line
Links directly to sterile filling bench or sealed bag filling systems
Touch screen control for ease of use
Compact, mobile, easy to install
Continuous and batch operation
Standard throughputs from 30 to >100 l/hr (dependent on conditions)
Units available to 200 l/hr
Process temperatures up to 150°C
Capable of aseptic operation
Fully instrumented
Preheating by hot water (indirect)
Heating by steam (indirect)
Plate and tubular heat exchanger options
Controlled product preheat and heating temperatures
Simple and rapid switch over between heat exchangers
Automatic product divert for low temperature on tubular heat exchanger
Built in Clean In Place (CIP) and Sterilisation In Place (SIP) facilities
Integral USB data logging
Two-stage cooling option
Electronic flowmeter option
Suction feed with in-line level sensor
