Specifications

• Applications: Coating Testing
• Materials: Inks and Coatings
• Measurement range for coated coils: ​ 0.7 to 350 microns* (clear/transparent coatings)​, 0.7 to 75 microns* (pigmented/non-transparent coatings)​. *Dependent on selected optical packages​
• Measurement range for coated flexible packaging materials and R2R processing: ​ 0.3 to 250 microns (coating thickness)​
• Accuracy: +/-3% of coating thickness (nominal)​ *based on​ accuracy verification using NIST traceable thickness standards over the entire measurement range of 0.2 to 250 microns
• Web Speed:  Up to 2000 feet/minute, Up to 600 meters/minute
• Measurement Speed: ​ Up to 150 per second
• Scanning Speed: ​ Up to 5″ (125 mm)/second
• Temperature Range: 0 to 55 °C
• Web Width: Available in standard industrial lengths, and customizable at additional cost
• Output metrics for coated coils systems: microns, mils, g/m2
• Output metrics for coated flexible packaging materials and R2R processing: microns, mils, mg /in2, mg/4in2, g/m2, mg /cm2, lbs/ream
• Operating System: Windows® platform
• Manufactured: Made in USA
• Certifications: CE approved, UL approved and CSA approved

Features & Benefits

• Non-contact and non-destructive – Real-time coating thicknes measurements are taken with no contact to coatings or substrate, preserving sample and product integrity
• Absolute Thickness Measurement – Ultra precise real-time measurement of applied coatings and layers across moving webs, coated coils and coated flat sheets, whether it be flexible materials, roll-to-roll applications or coated metal processing
• Substrate Independent – Absolute thickness measurement of wet or dry products over all metals, plastic, films and other substrates
• Broad Range of Use – Real-time measurement of applied film and web coatings including adhesives, barrier, scratch resistant, wet silicones, lacquers, applied primers, basecoats, topcoats, back coats, laminates, clear coats, UV coatings, and more
• Non-Hazardous – Incorporates exclusive non-radioactive and non-invasive ROI optical technologies
• Environmentally Friendly – Non-destructive testing method will reduce scrap, rework, materials consumption, solvent usage, labor hours and plant energy costs

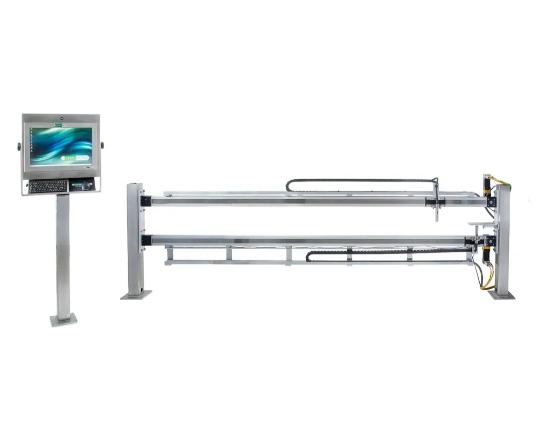

• Flexible, Fast and Modular – Modular​ in-line systems include fixed probe or traversing designs for single or dual sided use​

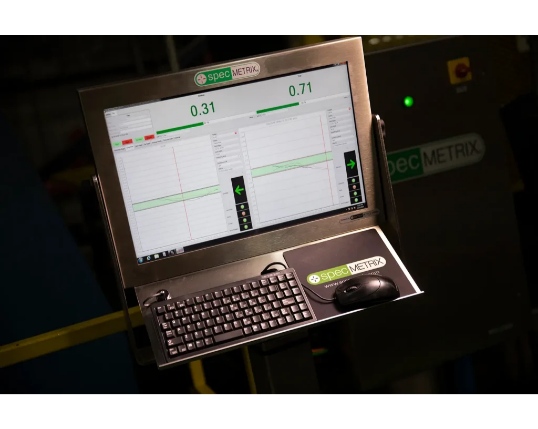

• Powerful SensorMetric Software – User-friendly software package stores all data to Excel® or plant networks for SPC analysis during or following production runs
