AUTOMATIC AEROSOL LAB

Category: Material & Flexibale packaging solutions

Brand: Torus

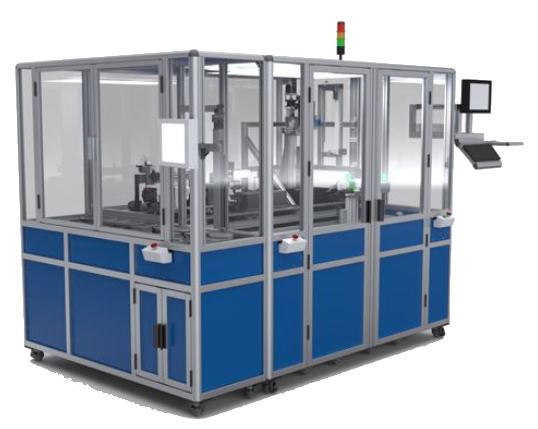

Torus’ TQ-Lab offers customers multiple quality control tests, selectable by customers based on requirements, in one single station. The multi-module concept improves accuracy and repeatability, reduces time and labour costs and saves on floor space in production environments.

Quick Enquiry

Features

KEY FEATURES

Technical Specification

Component Materials | Aluminium/Steel
Component Height Range | 80 – 400 mm
Component Gripper Pick Up Height | 75 – 395 mm
Component Outer Body Diameter Range | Ø 15 – Ø 160 mm
Component Internal Neck Diameter Range | Ø 15 – Ø 45 mm
Component Outer Neck Diameter Range | Ø 18 – Ø 54 mm
Component Weight Range | 5 – 3000 g

Measurement Features

Choose from between 2 and 4 measurement modules to customise your TQ Lab:

B302 – Thread, Body and Thickness Module
B304 – Load, Volume and Weight Module
B303 – Burst Pressures Module
B309 – Internal Diameter Module
Z702 – Finished Aerosol Can Inspection Module
